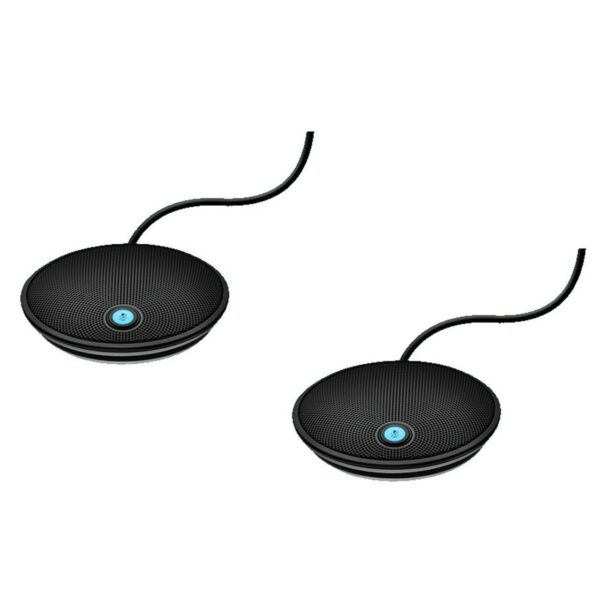

Logitech GROUP Expansion Mics - Image 1

Logitech GROUP Expansion Mics

Poly Studio P5 Kit With Voyager 4220 Headset Bundle
LOGITECH C505 HD WEBCAM
0 out of 5

$505.00

Categories: , Brand:

Description

Affordable video conferencing for mid to large-sized meeting rooms

  • See every detail with HD video and 10x zoom
  • Works with your meeting and video conferencing applications
  • Crystal-clear audio for up to 14 | 20 (standard | + expansion)



DIMENSIONS

Camera:
Height x Width x Depth: 130 mm x 170 mm x 138 mm
Weight: 585 g

Speakerphone:
Height x Width x Depth: 240 mm x 65 mm x 240 mm
Weight: 1223 g

Hub:
Height x Width x Depth: 94 mm x 34 mm x 74 mm
Weight: 83 g

Remote:
Height x Width x Depth: 50 mm x 120 mm x 12 mm
Weight: 51 g
Wall/Table Mount:
Height x Width x Depth: 210 mm x 120 mm x 99 mm
Weight: 255 g

Expansion Mics (Optional):
Height x Width x Depth: 83 mm x 83 mm x 21 mm
Weight: 230 g

SYSTEM REQUIREMENTS
Windows® 7, 8.1 or 10
macOS 10.10 or higher



TECHNICAL SPECIFICATIONS

CAMERA

  • Smooth motorized pan, tilt and zoom controlled from remote or console
  • Pan +/- 90°
  • Tilt +35° / -45
  • 10x lossless HD zoom
  • Field of View:
  • Diagonal: 90°
  • Horizontal: 82.1°
  • Vertical: 52.2°
  • Full HD 1080p 30fps
  • H.264 UVC 1.5 with Scalable Video Coding (SVC)
  • Autofocus
  • 5 camera presets
  • Far-end control (PTZ) of ConferenceCam product (with supported services)
  • Kensington security slot
  • Video mute/unmute LED indicator
  • Standard tripod thread

REMOTE CONTROL

  • Camera, speakerphone, and call control
  • 5 camera presets
  • Docks on speakerphone
  • IR 8.5 m
  • CR2032 battery (included)
  • SPEAKERPHONE
  • Full-duplex performance
  • Acoustic echo cancellation
  • Noise reduction technology
  • Ultra-wideband audio
  • Pairs with mobile devices via Bluetooth and NFC
  • LCD for caller ID, call duration and other functional response
  • LEDs for speakerphone streaming, mute, hold, and Bluetooth
  • Tactile buttons for call answer/end, volume and mute, Bluetooth, and camera controls
  • 5 camera presets for pan, tilt, and zoom settings
  • Kensington security slot

MICROPHONES

  • Pickup range: 6m
  • Pickup range with expansion mics: 8.5 m
  • Four omnidirectional, beamforming microphones
  • Frequency response: 100Hz – 11KHz
  • Sensitivity: -28dB +/-3dB
  • Distortion: <5% from 200Hz
  • HUB / CABLES / POWER
  • Central Hub connects and powers all components
  • Under-table mounting adhesive included
  • One cable to camera: 5 m
  • One cable to speakerphone: 5 m
  • Extended cables available (10 m and 15 m)
  • One USB cable for connection to PC/Mac (2 m)
  • AC Power adapter with regional plugs
  • Power cable (3 m)

MOUNT

  • Dual-purpose bracket works for both wall mounting and tabletop elevation
  • COMPATIBILITY AND CERTIFICATIONS
  • Plug-and-play USB connectivity
  • Certified for Skype for Business and ready for Teams
  • Zoom Certified
  • Fuze Certified
  • Compatible with Google Meet
  • Microsoft Cortana®
  • Cisco Jabber®
  • Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
