Description

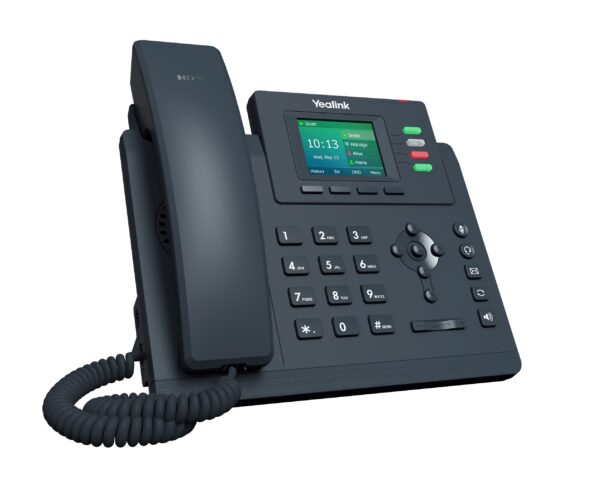

Entry-level IP Phone with 4 Lines & Color LCD
Phone Features
4 VoIP accounts
Call hold, mute, DND
One-touch speed dial, hotline
Call forward, call waiting, call transfer
Group listening, SMS, emergency call
Redial, call retur n, auto answer
Local 5-way conferencing
Direct IP call without SIP proxy
Physical Features
2.4” 320 x 240-pixel color display with backlight
16 bit depth color
LED for call and message waiting indication
4 line keys with LED
Hands-free speakerphone
6 navigation keys
Volume control keys
IP-PBX and BroadSoft Features
Busy Lamp Field (BLF)
Bridged Line Apperance (BLA)
Anonymous call, anonymous call rejection
Hot-desking, voice mail
Flexible seating
Call park, call pickup
Executive and Assistant
Centralized call recording
Visual voice mail
Call recording
Network and Security
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP
HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV (RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
Management
Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
Auto-provision with PnP
Zero-sp-touch, TR-069
Phone lock for personal privacy protection
Reset to factory, reboot
