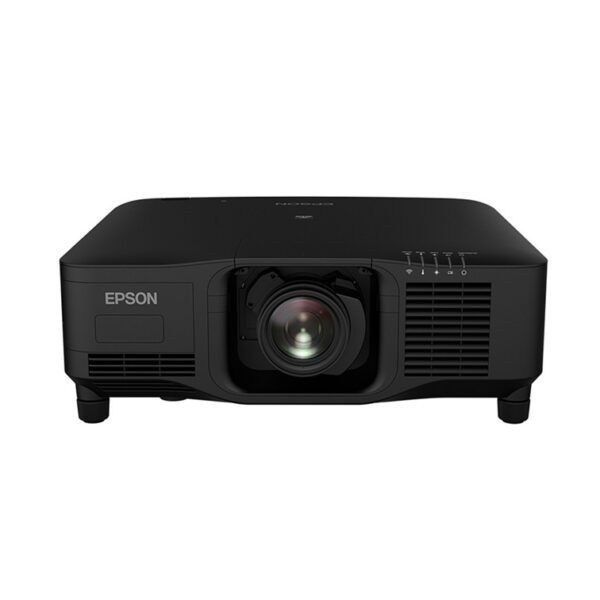

Epson EB-PU2220B 20,000-Lumen 3LCD Large Venue Laser Projector with 4K Enhancement

Description

EB-PU2220B 20,000-Lumen WUXGA 3LCD Laser Projector with 4K Enhancement

Ultra-high brightness large-venue laser projection

The Epson EB-PU2220B is the world’s smallest and lightest 20,000-lumen projector, engineered for professional live events, staging, immersive installations, exhibitions, broadcast environments, auditoriums, and command centres. Delivering 20,000 lumens of equal colour and white brightness, it produces exceptionally bright, sharp, and highly visible images even in extreme ambient light.

With native WUXGA (1920 × 1200) resolution and 4K Enhancement Technology, the EB-PU2220B accepts 4K content and delivers up to 4.6 million pixels on screen for crisp, detailed, and vibrant images suitable for professional production environments.

Built for reliability in demanding environments, the projector features a hermetically sealed IP5X optical engine, a filterless cabinet, and a liquid cooling system for low-maintenance, long-term operation. A mechanical shutter protects the projector during laser light shows, making it ideal for stage and event applications.

Designed for maximum installation flexibility, the EB-PU2220B supports 9 optional powered lenses and includes 3G-SDI input and output for daisy-chaining and long cable runs. Built-in NFC and the Epson Projector Config Tool simplify setup, diagnostics, and fleet management.

---

Incredible Colour Performance

Epson’s 3-chip 3LCD system with new 4-in-1 laser light source technology ensures consistent brightness, accurate colours, and excellent image uniformity across very large screens.

Engineered for Reliability

The hermetically sealed IP5X optical engine prevents dust contamination, while the filterless cabinet and liquid cooling system reduce maintenance needs and improve durability in harsh environments.

Epson Projector Config Tool (NFC)

Configure network and projection settings even when the projector is powered off, enabling faster deployment and centralised management across multiple units.

• Projection Technology: RGB liquid crystal shutter system (3LCD laser)

• Native Resolution: WUXGA (1920 × 1200) with 4K Enhancement
• Refresh Rate: 192 – 240 Hz

• Brightness:
White Light Output: 20,000 lm (Normal) / 14,000 lm (Eco)
Colour Light Output: 20,000 lm
Light Output (Center): 21,100 lm

• Contrast Ratio: Over 5,000,000:1

• Light Source:
Type: Laser Diode
Life (Normal/Extended): 20,000 hrs / 30,000 hrs

• Projection Lens:
Type: Power Zoom / Power Focus
F-Number: 1.8 – 2.3
Focal Length: 36.0 – 57.40 mm
Zoom Ratio: 1.0 – 1.6
Throw Ratio: 1.57 – 2.56
Lens Exchange: Yes

• Lens Shift:
Vertical: ±60% (powered)
Horizontal: ±18% (powered)

• Screen Size:
60″ – 1,000″ (1.99 – 34.43 m wide)
60″ – 1,000″ (3.26 – 55.63 m tele)

• Geometric Correction:
Vertical ±45° / Horizontal ±30°
Curve Surface, Corner Wall, Point Correction, Quick Corner
Geometry Correction Memory: Yes

• Connectivity:
HDMI × 1 (HDCP 2.3)
DVI-D × 1 (HDCP 1.4)
HDBaseT (RX) × 1 (HDCP 2.3)
BNC SDI In × 1 (SD/HD/3G-SDI)
BNC SDI Out × 1 (SD/HD/3G-SDI)
RJ45 LAN × 1
USB-A × 2 (ELPEC01, firmware, OSD, 5V/2A)
USB-B × 1 (service)
RS-232C × 1
Remote Mini Jack × 1
Stereo Mini Audio Out × 1

• Wireless (Optional ELPAP11):
Supports Infrastructure & Wi-Fi Direct
Security: OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
EAP: PEAP, PEAP-TLS, EAP-TLS, EAP-FAST

• Start-Up / Shut Down:
Start-Up: < 8 seconds (logo); Quick display < 7 seconds
Cool Down: Instant Off
Direct Power On/Off: Yes

• Fan Noise: 45dB (Normal) / 37dB (Quiet)

• Power:
AC 100–240V, 50/60Hz
Power Consumption: 1301W (Normal) / 899W (Extended)
Standby: 2.0W (Network) / 0.4W (Energy Saving)

• Dimensions: 492 × 586 × 185 mm
• Weight: Approx. 24.4 kg
