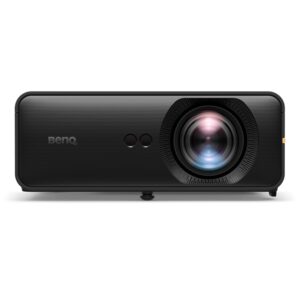

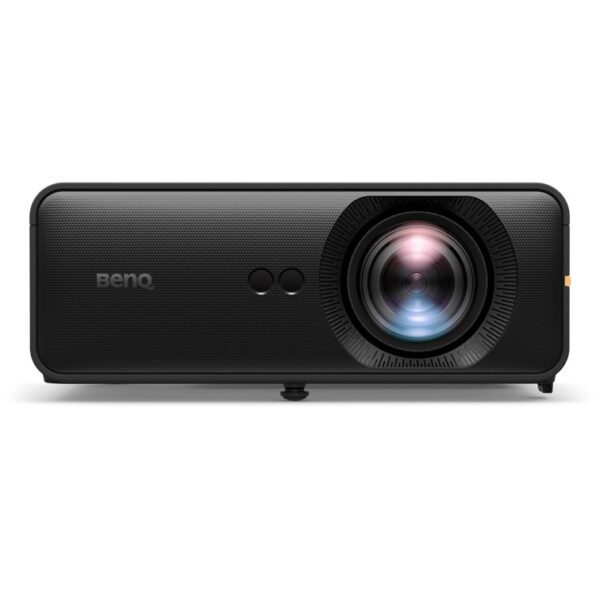

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector

benQ ak700st projector BenQ AK700ST 4000AL 4K Laser Golf Simulator Projector
benQ GV50p projector BenQ GV50P | 1080p 500lm Laser Portable Projector for Bedside Ceiling Projection with Google TV
0 out of 5

$2,999.00

1080p laser short throw projector designed for indoor golf simulation in compact spaces.

Key highlights:

  • Full HD 1080p (1920 × 1080) resolution

  • 4000 ANSI lumens laser brightness

  • Ultra short throw ratio (0.499) for limited spaces

  • BenQ Screen Fill with multiple aspect ratios

  • Exclusive golf picture mode for simulation

Categories: , , , , Brand:

Description

AH500ST | 4000-Lumen Short Throw 1080p Laser Golf Simulator Projector

The AH500ST Short Throw Laser Projector is designed to recreate a realistic indoor golf simulation experience in compact spaces. Delivering 4000 ANSI lumens with Full HD 1080p resolution, it produces bright, clear visuals suitable for low-ceiling and limited-distance installations.

With a TR 0.499 short throw ratio, the AH500ST projects large images from a very short distance. BenQ Screen Fill automatically adjusts projection to 1:1, 4:3, 16:9, or 16:10 native resolutions, while Quick Focus enables fast and accurate image setup. BenQ Exclusive Golf Mode enhances color presentation for a more immersive simulation experience.

Built with a dustproof, maintenance-free laser light source, the AH500ST offers long-term reliability with up to 38,000 hours of operation in ECO mode, making it well suited for frequent and extended use.

DETAILED SPECIFICATIONS

Display

  • Brightness (ANSI lumens): 4000

  • Resolution: 1080p (1920 × 1080)

  • Native Aspect Ratio: 16:9

  • Contrast Ratio (FOFO): 3,000,000:1

  • Display Color: 30-bit (1.07 billion colors)

  • Light Source: Laser

  • Light Source Life:

    • Normal: 20,000 hours

    • ECO: 38,000 hours

  • Screen Fill: 16:9, 16:10, 4:3, 1:1

  • Quick Focus: Yes

Optical

  • Throw Ratio: 0.499

  • Zoom Ratio: Fixed

  • Lens: F/# = 2.8; f = 7.46 mm

  • Projection Offset (Full-Height): 112%

  • Keystone Adjustment: 2D, Vertical ±30°, Horizontal ±30°


  • Rec.709 Coverage: 83%

  • Picture Modes:
    3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

Compatibility

  • Input Lag:

    • 16.7 ms (1080p@120Hz)

    • 33.4 ms (1080p@60Hz)

  • Resolution Support: VGA (640 × 480) to 4K UHD (3840 × 2160)

  • Horizontal Frequency: 15K – 102KHz

  • Vertical Scan Rate: 23 – 120Hz

I/O Interface

  • HDMI In:

    • HDMI-1 (2.0a / HDCP2.2)

    • HDMI-2 (2.0a / HDCP2.2)

  • LAN (RJ45): x1

  • USB Type-A: x1 (2.0 / Wireless Dongle)

  • USB Type Mini-B: x1 (Service)

  • RS232 In (DB-9 pin): x1

Audio

  • Speaker: 1 × 10W

  • Audio Out: 3.5mm mini jack ×1

Environment

  • Operating Temperature: 0 – 40°C

  • Power Supply: AC 100 – 240V, 50 / 60Hz

  • Typical Power Consumption (110V): 250W

  • Standby Power Consumption: <0.5W

  • Network Standby Power Consumption: <2W

  • Acoustic Noise (Normal / ECO): 35 / 32 dB

Accessories

  • Wireless USB Dongle: EZC-5201BS 1080p (Optional)

  • Remote Control w/ Battery: RCE018

  • Power Cord (by region): x1 (3.0m)

  • Quick Start Guide: x1

  • Warranty Card: Yes

  • Lens Cover: Yes

Dimensions & Weight

  • Dimensions (W × H × D): 320.0 × 130.6 × 255 mm

  • Net Weight: 5.1 kg

  • Dimensions (W × H × D): 12.60 × 5.14 × 10.04 inches

  • Net Weight: 11.2 lb

Projection System

  • Projection System: DLP
