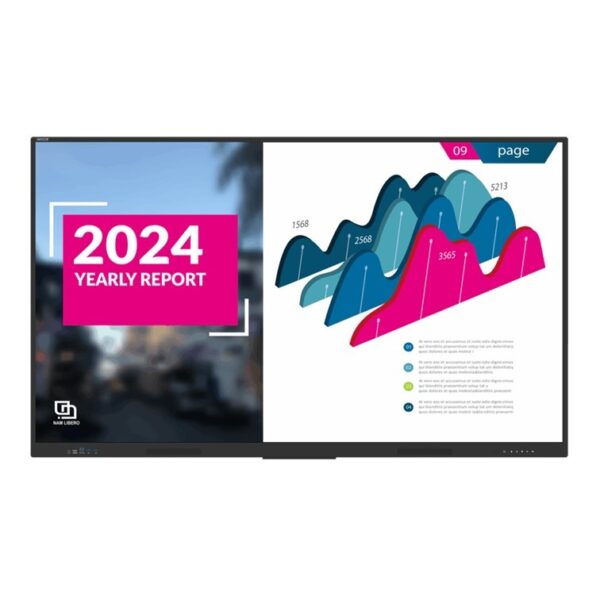

AVOCOR E50 AVE-8650 – 86″ 4K Interactive Display
$6,499.00
- 86 inch 4K UHD interactive display for classrooms and large meeting rooms
- Up to 40 point IR multi-touch collaboration
- Android 13 system with 4GB RAM and 32GB storage
- Built-in wireless sharing, whiteboarding and signage apps
- USB-C, HDMI, DisplayPort, LAN and OPS expansion support
- Dual 15W speakers with professional 16/7 operation
- Description
Description
The Avocor AVE-8650 86-inch 4K Interactive Display from the E50 Series is designed to deliver powerful collaboration experiences for classrooms, boardrooms, and large meeting environments. With a large 86-inch screen and 4K UHD resolution, the display provides clear visuals and vibrant colors for presentations, interactive lessons, and team discussions.
Advanced infrared touch technology supports up to 40 simultaneous touch points, allowing multiple participants to interact with the display at the same time. Users can write, annotate, and navigate content naturally using a stylus, finger, or palm for smooth and responsive collaboration.
The panel features anti-glare and anti-fingerprint glass with zero-parallax bonding, providing accurate writing performance and a natural whiteboard-like experience. This ensures smooth interaction with minimal latency during presentations, brainstorming sessions, and collaborative meetings.
Powered by Android 13 with an Amlogic processor, 4GB RAM and 32GB storage, the AVE-8650 includes built-in collaboration tools such as Lucidspark whiteboarding, DisplayNote Montage wireless sharing, and Rise Vision digital signage. The Avocor UiQ touch interface allows users to easily access apps, switch inputs, and manage content directly from the display.
The display supports Bring-Your-Own-Meeting workflows with convenient front and side connectivity including USB-C, HDMI, USB-A, DisplayPort, and USB-B touch ports. IT administrators can also manage displays remotely through the Avocor FUSE cloud-based management platform.
With integrated dual speakers, enterprise connectivity, and reliable 16/7 operation, the Avocor AVE-8650 provides a large-format interactive display solution for education institutions, training spaces, and corporate collaboration environments.
Specification
| • Model: Avocor AVE-8650 |
| • Series: Avocor E50 Series |
| • Screen Size: 86″ |
| • Backlight: Direct-lit LED |
| • Resolution: 3840 × 2160 @ 60Hz |
| • Aspect Ratio: 16:9 |
| • Brightness: 400 cd/m² |
| • Contrast Ratio: 1200:1 |
| • Viewing Angle: 178° / 178° |
| • Response Time: 8 ms |
| • Supported Colors: 10 Bit (1.07 Billion Colors) |
| • Display Orientation: Landscape |
| • Touch Technology: IR Touch |
| • Touch Points: Up to 40-point multi-touch |
| • Glass Type: Zero parallax, anti-glare, anti-fingerprint |
| • Stylus Support: Fine tip stylus supported |
| • Operating System: Android 13 |
| • Chipset: Amlogic A311D2 |
| • CPU: Cortex A73 ×4 + A53 ×4 |
| • GPU: Mali-G52 MP8 |
| • RAM: 4GB |
| • Storage: 32GB |
| • HDMI Inputs: 3 × HDMI 2.0 |
| • HDMI Output: 1 × HDMI Out |
| • USB Ports: USB-A 3.0 and USB-B Touch ports |
| • DisplayPort: 1 × DisplayPort 1.2 |
| • USB-C: Type-C connectivity supported |
| • Network: LAN Ethernet (RJ-45) In / Out |
| • Control: RS-232 |
| • OPS Slot: Yes |
| • WiFi: Yes |
| • Built-in Speakers: 2 × 15W |
| • Audio Output: 3.5mm Audio Out, Optical SPDIF |
| • Microphone: None |
| • Camera: None |
| • Operation Time: 16/7 |
| • Presence Sensor: Yes |
| • Auto Source Detection: Yes |
| • Source Preview: Yes |
| • Product Dimensions: 1961.8 × 87.7 × 1169.9 mm |
| • Shipping Dimensions: 2160 × 225 × 1310 mm |
| • Net Weight: 65.5 kg |
| • Gross Weight: 77 kg |
| • VESA Mount: 800 × 600 mm |
| • Power Supply: AC 100–240V, 50/60Hz |
| • Max Power Consumption: 460W |
| • Standby Power: ≤0.5W |
| • Operating Temperature: 0°C – 40°C |
| • Storage Temperature: −20°C – 60°C |
| • Humidity: 20% – 85% |
