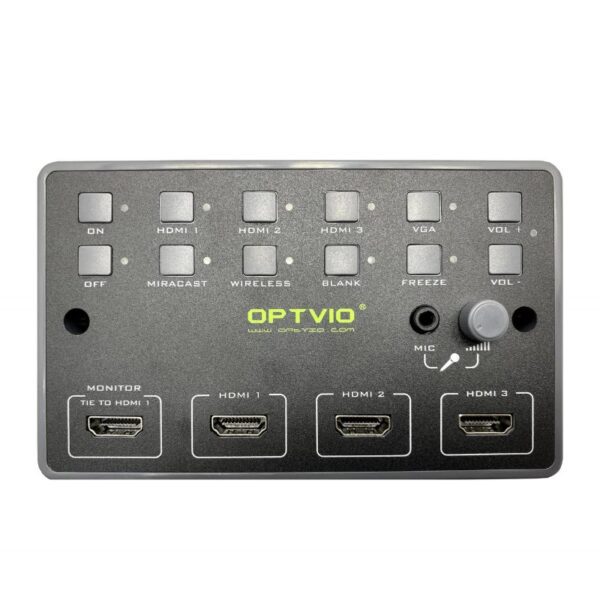

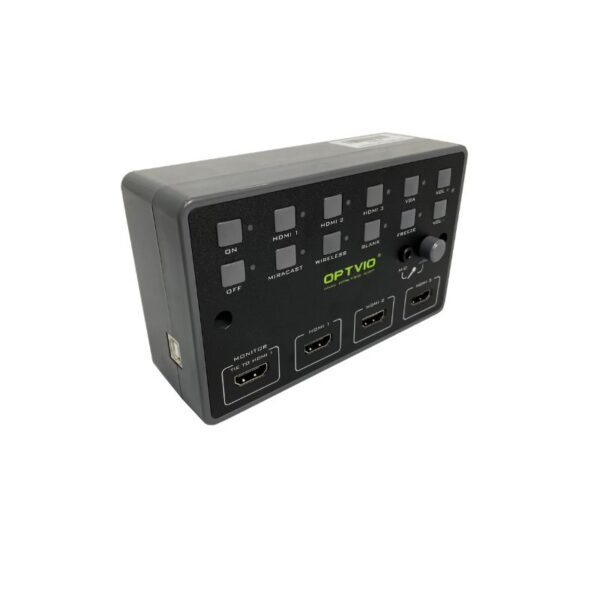

Projector Control Panel : OPT-PS5H

Description

PROJECTOR CONTROL PANEL with HDMI

Specifications
INPUT

• 3 x HDMI
• 1 x USB Type B Female
• 1 x 3.5mm Microphone In Jack
• 1 x 12V DC Power

OUTPUT

• 1 x HDMI (Tie to HDMI 1)
• 2 x Audio (To Active Speaker)
• 1 x Control (RS232)
• Screen Control (Direct Connection to Low Voltage Screen Control)

Features

• PROJECTOR CONTROL PANEL with HDMI
• Display controller for your displays. Control POWER ON/OFF, 3 x input source selection, and volume control through RS232 commands.
• 3 x HDMI input selection
• 1 x USB Type B Female input
• Supported resolution up to 1920 x 1080 for HDMI
• Bandwidth up to 350MHz
• Pre-programmed control protocols for different projector models
• Digital volume control for sound level (for both microphone and audio source)
• Screen control
• Small and elegant (L: 148mm x W: 85mm x H: 52mm)
• Comes with DC12V / 1A adapter
