Description

Product Details

• 4,800 ANSI Lumens WXGA Business Projector

• 22,000:1 contrast ratio for sharp image clarity

• SuperColor™ technology for accurate, vibrant colors

• 5 preset color modes: Standard, Brightest, Presentation, Photo, Movie

• Auto Power Off for energy saving

• Vertical Keystone correction for flexible setup

---

Overview

The ViewSonic SP7 delivers bright, detailed, and color-accurate projection, making it ideal for small business meeting rooms and classrooms. With 4,800 ANSI Lumens brightness and a 22,000:1 contrast ratio, it ensures clear visuals even in well-lit environments.

Featuring SuperColor™ technology, the SP7 enhances image quality with a wider color range and true-to-life accuracy. With 5 preset color modes and energy-saving SuperEco mode, users can optimize projection settings while extending lamp life up to 15,000 hours. Combined with vertical keystone correction and a compact design, the SP7 is a cost-effective and reliable solution for professional presentations.

---

Specifications

Optical & Display

• Projection System: 0.65″ WXGA (DC3)

• Native Resolution: 1280 × 800

• Brightness: 4,800 ANSI Lumens

• Contrast Ratio (SuperEco): 22,000:1

• Display Colors: 1.07 Billion

• Light Source: Lamp

• Light Source Life: 5,000 hrs (Normal) / 15,000 hrs (SuperEco)

• Lamp Watt: 200W

• Lens: F=2.56–2.68, f=22–24.1 mm

• Projection Offset: 100% ±5%

• Throw Ratio: 1.55–1.70

• Optical Zoom: 1.1×

• Image Size: 30″ – 300″

• Throw Distance: 1.0 – 10.98 m (100″ @ 3.34 m)

• Keystone: ±40° (Vertical)

• Audible Noise (Eco): 27 dB

• Resolution Support: VGA (640 × 480) to Full HD (1920 × 1080)

• HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

• Video Compatibility: NTSC, PAL, SECAM

• Horizontal Frequency: 15K – 102KHz

• Vertical Scan Rate: 23 – 120Hz

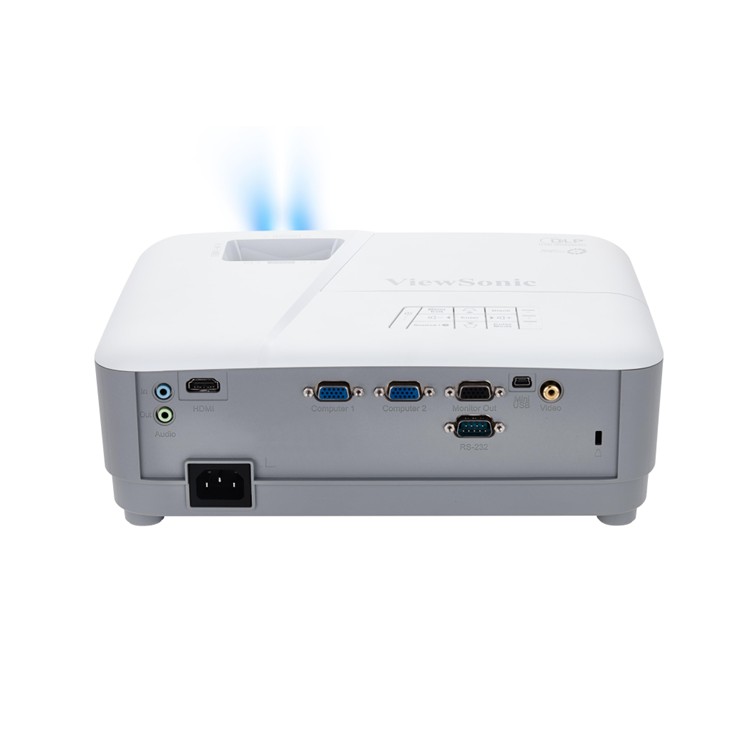

Inputs

• Computer In (shared with Component): 2

• Composite: 1

• HDMI: 1 (Back)

• Audio In (3.5mm): 1

Outputs

• Monitor Out: 1

• Audio Out (3.5mm): 1

• Speaker: 2W

Control

• RS232: 1

• USB Type Mini-B (Service): 1

General

• Power Supply: AC 100–240V ±10%, 50/60Hz

• Power Consumption: 260W (Normal) / <0.5W (Standby)

• Operating Temperature: 0 – 40℃

• Carton: Brown

• Net Weight: 2.2 kg

• Dimensions (W × D × H): 294 × 218 × 110 mm (with adjustment foot)

• OSD Languages: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese

---

Accessories

Standard

• Power Cord: 1

• VGA Cable: 1

• Remote Control: 1
