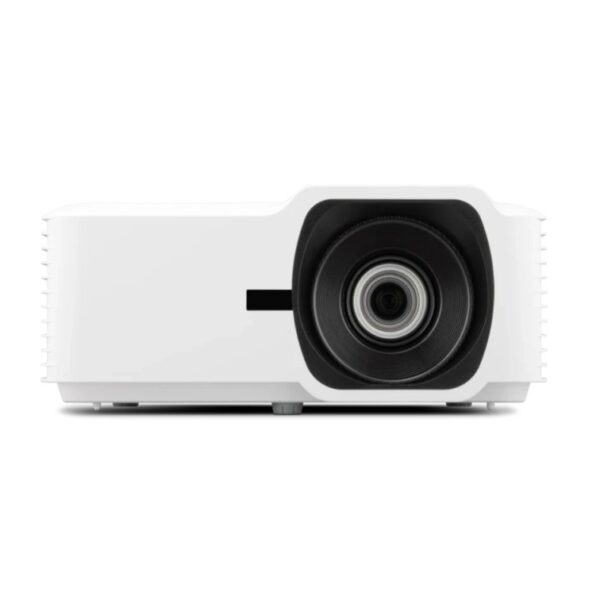

ViewSonic LS741HD projector

ViewSonic LS740HD projector
ViewSonic LS832WU projector

$2,199.00

Categories: , ,

Description

Product Details

  • 5,000 ANSI Lumens 1080p Laser Installation Projector

  • 3rd generation laser phosphor technology with a lifespan up to 30,000 hours

  • 5,000 ANSI Lumens offering bright images in any environment

  • Installation flexibility: 1.6× optical zoom, H/V keystone, 360° projection, and portrait mode

  • Centralized LAN control for efficient management

  • Compact size and lightweight design reducing cost of transportation and installation

  • Up to a 300″ ultra-large screen with a lower cost-per-inch

Overview

The LS741HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational spaces. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,000 ANSI Lumens for up to 30,000 hours. Its lamp-free design offers an eco-friendly and cost-effective solution with less power consumption, while its lightweight and compact build reduces transportation costs. Equipped with features like a 1.6× optical zoom, H/V keystone, and 360° projection capabilities, the LS741HD offers flexible setup possibilities. Additionally, its comprehensive LAN control allows centralized management, making it perfect for boardrooms, lecture halls, and public spaces.

Specifications

Optical & Display

  • Projection System: 0.65″ 1080P

  • Native Resolution: 1920 × 1080

  • Brightness: 5,000 ANSI Lumens

  • Contrast Ratio: 3,000,000:1

  • Display Color: 1.07 Billion Colors

  • Light Source Type: Laser Phosphor

  • Light Source Life: 20,000 hrs (Normal) / 30,000 hrs (Eco)

  • Lens: F=2.5–3.26, f=20.911–32.62mm

  • Projection Offset: 132% ±10%

  • Throw Ratio: 1.4–2.24

  • Optical Zoom: 1.6×

  • Digital Zoom: 0.8×–2.0×

  • Image Size: 30″–300″

  • Throw Distance: 0.93–14.88m (100″ @ 3.10m)

  • Keystone: H ±30°, V ±30°

  • Audible Noise (Normal): 30 dB

  • Audible Noise (Eco): 24 dB

  • Input Lag: 49.5 ms

  • Resolution Support: VGA (640 × 480) to WUXGA RB (1920 × 1200)

  • HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • Horizontal Frequency: 15K–102KHz

  • Vertical Scan Rate: 24–120Hz

Input

  • HDMI: 2 (HDMI 1.4 / HDCP 1.4)

Output

  • Audio-out (3.5mm): 1

  • Speaker: 15W

  • USB Type-A (Power): 1 (5V/1.5A)

Control

  • RS232 (DB9): 1

  • RJ45 (LAN control): 1

  • USB Type-A (Service): 1 (shared with USB-A Output)

Others

  • Power Supply Voltage: Power adaptor — Input: 100–240V, Output: 19.5VDC / 11.79A

  • Power Consumption: 210W (Normal) / <0.5W (Standby)

  • Operating Temperature: 0–40℃

  • Carton: Brown

  • Net Weight: 3.00 kg

  • Gross Weight: 4.70 kg

  • Dimensions (W × D × H) with Adjustment Foot: 286 × 216 × 129 mm

  • Packing Dimensions: 400 × 280 × 155 mm

  • OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Arabic, Vietnamese, Hungarian, Norsk (total 23)

  • User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese (total 20)

Accessories

Standard

  • Power Cord: 1

  • Remote Control: 1
