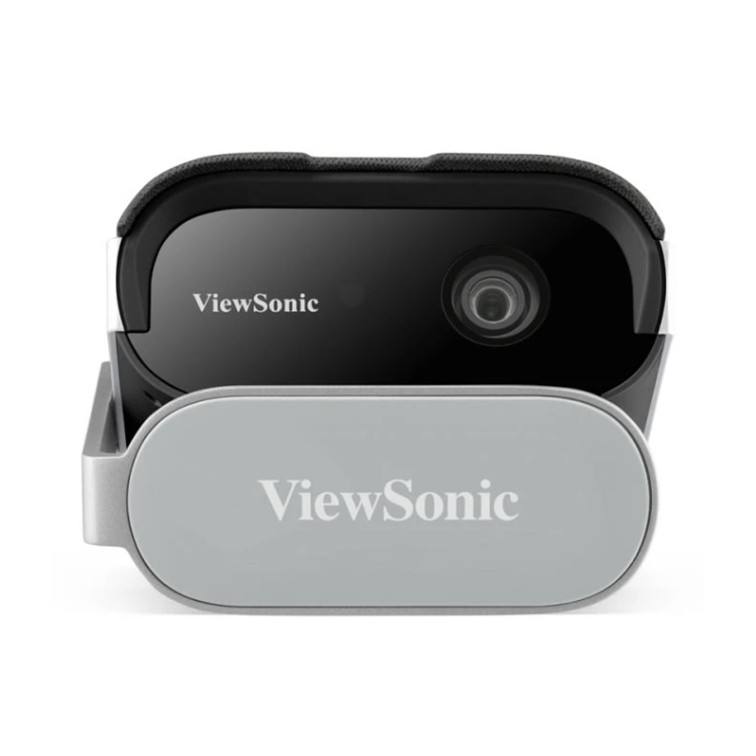

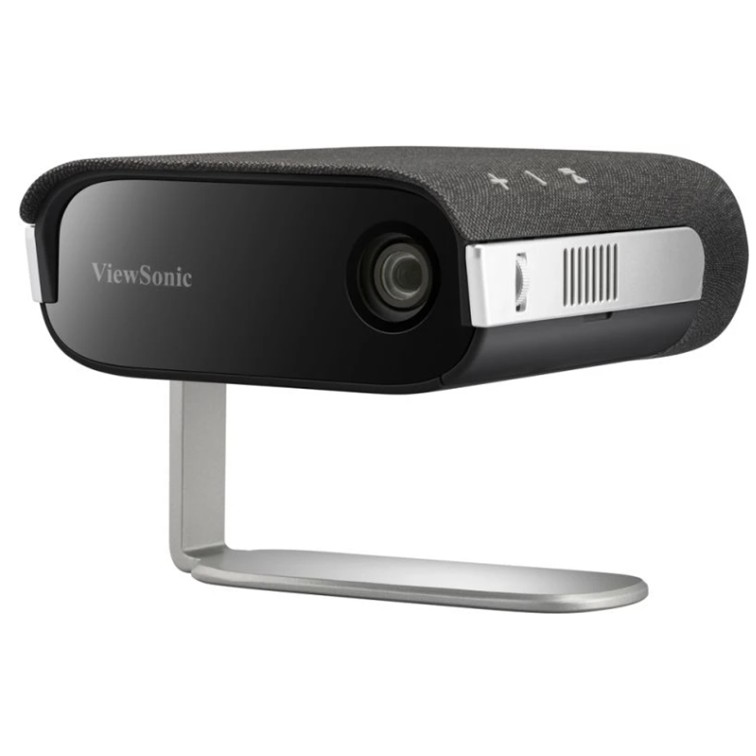

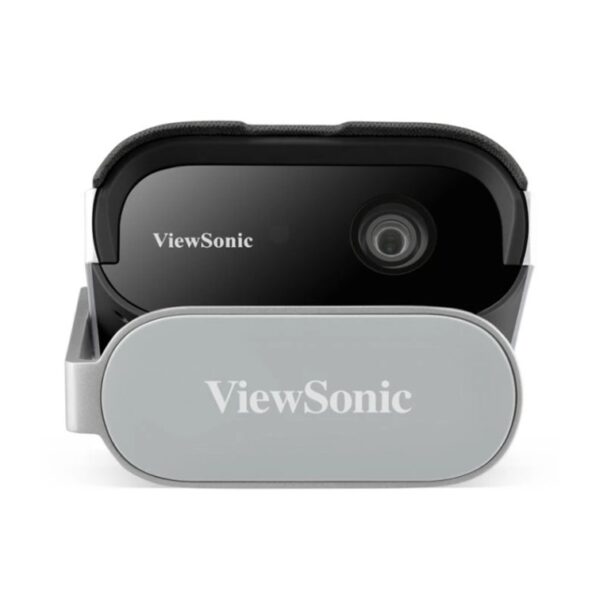

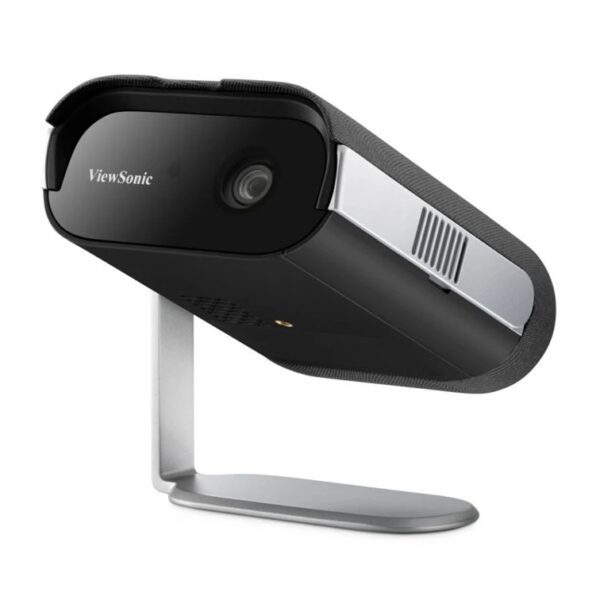

ViewSonic M1 MAX projector

ViewSonic M1X projector
ViewSonic M10 projector

$899.00

Categories: , ,

Description

Product Details

  • 1080p Smart LED Portable Projector with Built-in Google TV

  • Built-in Google TV and native Netflix for seamless streaming

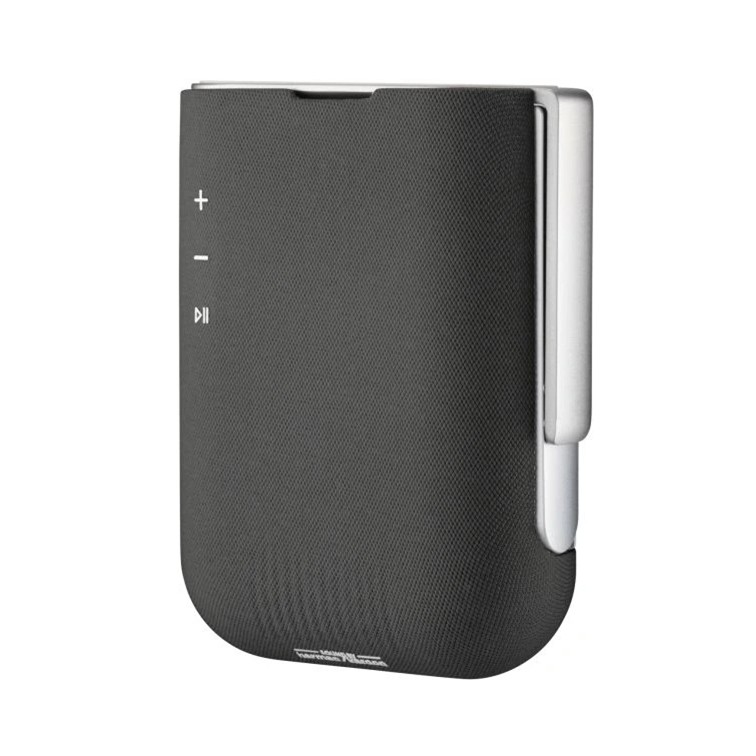

  • Patented 3-in-1 smart stand for 360° projection

  • 1080p Full HD visuals with Harman Kardon speakers for immersive sound

  • Integrated battery with power bank support for extended use

  • Smart connectivity: Wi-Fi screen mirroring, USB-C streaming, and Bluetooth

  • Hassle-free setup with auto H/V keystone correction and instant auto focus

Overview

The M1 Max is a premium smart LED portable projector that combines portability, flexibility, and entertainment in one sleek design. Weighing less than 1kg, it offers Full HD 1080p resolution, built-in Google TV with native Netflix, and up to 100″ projection size for an elevated viewing experience.

Its patented 3-in-1 smart stand supports 360° projection, while auto focus and auto H/V keystone correction ensure quick, hassle-free setup. The built-in Harman Kardon speakers deliver cinematic sound, and the integrated battery with power bank support extends viewing time. Connectivity is seamless with Wi-Fi, Bluetooth, and USB-C streaming, making the M1 Max a complete portable entertainment solution for indoor and outdoor use.

Specifications

Optical & Display

  • Projection System: 0.23″ 1080p

  • Native Resolution: 1920 × 1080

  • Brightness: 500 (LED Lumens)

  • Contrast Ratio: 120,000:1

  • Display Colors: 1.07 Billion

  • Light Source: LED

  • Light Source Life: 60,000 hrs

  • Lens: F=1.7, f=7.4 mm

  • Projection Offset: 100% ±5%

  • Throw Ratio: 1.2

  • Optical Zoom: Fixed

  • Digital Zoom: 0.8× – 1.0×

  • Image Size: 40″ – 100″

  • Throw Distance: 0.8 – 2.67 m (40″ @ 1.07 m)

  • Keystone: H ±40°, V ±40°

  • Audible Noise: 26 dB (Normal) / 25 dB (Eco)

  • Local Storage: 8GB (4GB available)

  • Input Lag: 165 ms

  • Resolution Support: VGA (640 × 480) to Full HD (1920 × 1080)

  • HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

  • Horizontal Frequency: 15K – 102KHz

  • Vertical Scan Rate: 23 – 85Hz

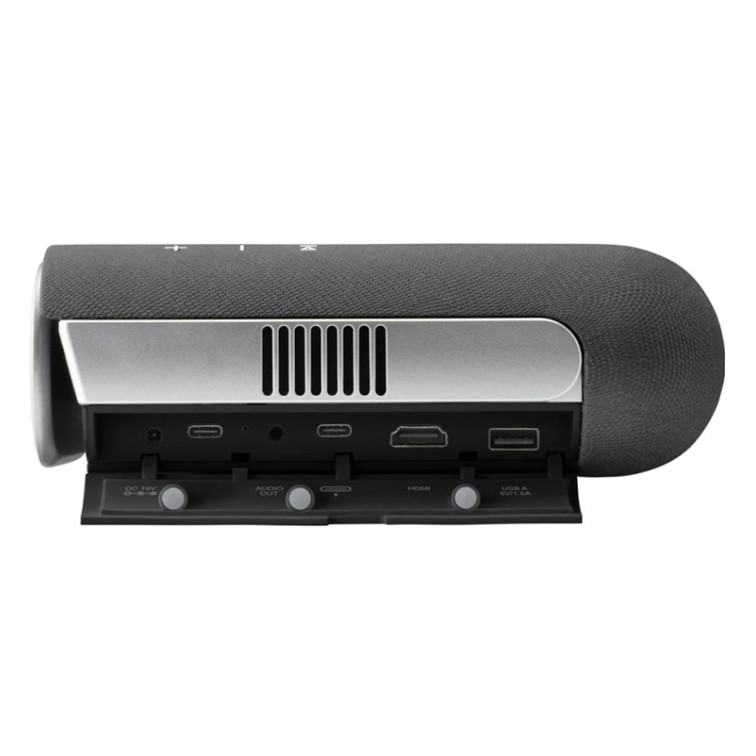

Inputs

  • HDMI: 1 (HDMI 1.4 / HDCP 1.4)

  • USB Type-C: 1 (Video/5V/1A out, DC in / 15V/3A)

  • USB Type-A: 1 (USB2.0 Reader)

  • Wi-Fi Input: 1 (5G n)

Outputs

  • Audio Out (3.5mm): 1

  • Audio Out (Bluetooth 5.0): 1

  • Speaker: 3W Cube ×2 (Full range ×2)

  • USB Type-A (Power, USB2.0, 5V/1A, shared with Input): 1

Control

  • USB Type-A (Service, shared with Input): 1

General

  • Power Supply: Adaptor (Input: 100–240V; Output: 19VDC / 3.26A)

  • Battery: 12,000mAh (4000mAh ×3, 3.7V) — 1.5 hrs (Normal) / 2 hrs (Eco)

  • Power Consumption: 46W (Normal) / <0.5W (Standby)

  • Operating Temperature: 0 – 35℃

  • Carton: Color

  • Net Weight: 0.96 kg

  • Gross Weight: 2.02 kg

  • Dimensions (W × D × H): 182 × 141 × 62 mm (with adjustment foot)

  • Packing Dimensions: 235 × 190 × 130 mm

  • OSD Languages: 24

  • User Guide Languages: 20

Accessories

Standard

  • Power Cord: 1

  • USB-C Cable (1m): 1

  • Remote Control (BT, without backlit): 1

  • Quick Start Guide: Yes
