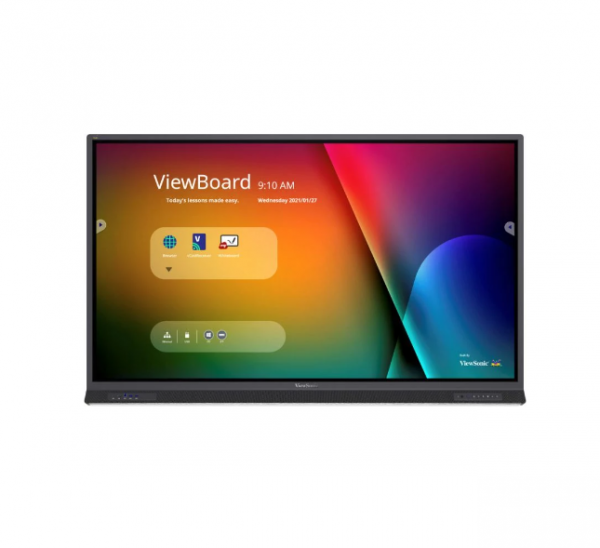

ViewSonic IFP7552 ViewBoard® 75″ 4K Interactive Display
- USB-C for plug-and-play connectivity via a single cable
- Angular design with easy access shortcut keys for seamless usability
- Dual-pen, 33-point touch with naturally smooth writing experience
- Industry-leading audio and advanced eye-care technology
- Centralized remote management system via myViewBoard Manager
The ViewBoard® 52 Series is a 4K Ultra HD interactive whiteboard equipped with user-centric design features and best-in-class collaboration tools for today’s lessons made easy. With a single-cable solution for instant, worry-free connectivity and a unique angular design for easy access to shortcut keys and I/O ports, teachers can seamlessly connect and control for uninterrupted, flowing classes. Dual-pen capability, 33-point touch, Ultra Fine Touch and palm awareness technology combine for a naturally smooth writing experience and endless opportunities for student collaboration, supported by 2X15W front-facing speakers and a 15W subwoofer for amplified student engagement. In another industry-first feature of the display, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualizer to select the most appropriate camera and mic source. Complete with a browser-based remote management system, the ViewBoard 52 Series delivers a market-leading interactive whiteboard solution for teachers, students, and IT managers.
ViewBoard® 52 Series
Today’s lessons made easy
Newly designed for better lesson delivery
Advanced Eye-Care Technology
Safety and Security
Newly Designed with Innovative Multimedia Sound Bar
Upgraded for a better teaching and learning experience.
Recognizing the power of sound in student engagement, the in-built speakers are positioned front and center to fill the room with rich audio that ensures every detail can be heard.
Responsive 8-Mic Array
An in-built 8-mic array with acute noise detection and cancellation capability. Combined with another industry-first feature within the ViewBoard 52 Series, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualizer to select the most appropriate camera and mic source.
Designed for Teachers
User-centric and digitally styled to support lessons that flow.
Instant Connection via USB-C
A single-cord solution for data, video and power with no preparation or technical know-how required. Teachers simply plug-and-play for immediate presentation, whiteboarding, and collaborative functionality using the familiar software of their own device.
Wireless Connection via vCastSender
No cable required. ViewSonic’s vCastSender application allows teachers to connect wirelessly through a one-time password for cable-free classes with complete functionality of the display’s presentation and collaboration tools.
Easy Casting via myViewBoard Display
Ideal for quick presentations and guest users, myViewBoard Display allows users to cast directly to the ViewBoard 52 via their internet browser for instant screen-mirroring with no cable or download necessary.
Industry-First User-Centric Design
The unique angular design puts the control buttons and I/O ports clearly in line of sight, giving teachers easier access than competing products and allowing them to seamlessly and creatively incorporate the display into classes without disrupting the lesson flow.
*Image shown is for illustration purposes only. Actual product may vary.
Easy Access Shortcut Keys
Designed for simplified control, the easily accessible shortcut keys allow teachers to instantly disable the touch function when not required and to freeze the display screen for independent use of their personal device during presentations.
Built for Students
Intuitive digital collaboration with eye-care technology.
Best-in-Class Collaboration Tools
The 4K Ultra HD display comes equipped with Ultra Fine Touch and palm awareness technology to deliver a completely natural writing experience with dual-pen, 33-point touch capability to support in-class or online student collaboration.
Industry-Leading Classroom Sound
Designed to fill the classroom with robust, attention-grabbing sound, the ViewBoard 52 Series features 2X15W speakers and a 15W subwoofer embedded within the front-facing soundbar to further amplify the impact of in-class music and videos for increased overall engagement.
Advanced Screen Bonding Technology
By reducing the space between the glass and the panels to a single millimeter, advanced bonding technology brings even brighter, better, and clearer visuals to an already impressive display.
Advanced Eye-Care Technology
With True Flicker-Free technology, a blue light filter, and an anti-glare coating all built directly into the display hardware, the ViewBoard 52 Series offers an automatic, superior viewing experience that is both eye friendly and energy efficient.
Centralized Management for Schools
User-friendly remote management via desktop or mobile.
Remote Management System
The browser-based myViewBoard® Manager application allows IT managers and verified admin users to update, schedule, broadcast and manage multiple displays simultaneously from any location through a secure, user-friendly remote management system.
Device Agnostic and Software Compatible
Designed to use the software you know, the ViewBoard 52 Series operates on Android 9.0 and is compatible with Windows, Mac, Chrome and Linux with full touch input functionality for all connected devices.
Enterprise-Grade Safety and Security
The built-in AWS-powered myViewBoard® whiteboarding software provides comprehensive and trustworthy data protection through cloud-powered security and encryption to ensure the security and safety of private files and information.
Upgraded System Configuration
The ViewBoard 52 Series is pre-installed with a powerful Quad Core A73 CPU, 4GB RAM, 32GB ROM, and runs on the Android 9.0 operating system to be more compatible with the latest apps.
Dimensions & I/O Ports
- HDMI In
- USB 3.0 X 2
- 8-Microphone Array
- Front-Facing Speakers
- Menu Controls
- OPS Slot
- Wi-Fi Module Slot
- USB 3.0 X 2
- USB 2.0
- DP In
- HDMI In X 2
- VESA® Wall Mount 600 x 400mm
- HDMI Out
- Audio In
Panel Size: 75″
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1649.644(H) x 927.936(V)
Aspect Ratio: 16:9
Resolution: UHD 3840×2160(Pixels)
Colors: 1.07B colors (10bit)
Brightness: 400 nits (typ.)
Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours (Typ.)
Surface Treatment: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating
Processor: ARM Cortex A73*4
RAM: 4GB (IFP7552-1A), 8GB (IFP7552-1B)
Storage: 32GB (IFP7552-1A), 64GB (IFP7552-1B)
Type/ Tech: UFT (Ultra Fine Touch) Technology
Touch Resolution: 32767 x 32767
Touch Point: Windows: 33 points touch, Android: 20 points touch
HDMI: x2 (3840×2160@60Hz, HDCP2.2, CEC, Front x1, Side x1), x1 (3840×2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
RGB / VGA: x1 (1920×1080 @60Hz)
DisplayPort: x1 (3840×2160 @60Hz)
Audio: x1 (PC audio in)
OPS: module slot x 1
WiFi: module slot x 1
HDMI: x1 (on demand)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)
Type A: USB 2.0 x1(Side x1), USB 3.0 x4 (Front x2, Side x2, SmartPort™ USB)
Type B: x2, for touch
Type C: x1 (USB3.0, DP1.2 Alt Mode, 100M Ethernet, 60W PD)
15W x 2 + 15W x 1 subwoofer
built-in 8-array microphone
- Top Camera Plate
- Embedded OS
- Bundle Software
Basic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display
- Special Features
All-in-one USB port: USB 3.0 x 4
Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC
Light Sensor: Yes
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 159.4W (Typ.) < 0.5 W (“”Off””)
Wall Mount (VESA® ): 800 x 400
- OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH Non-Condensing
- DIMENSIONS (W x H x D)
Physical (inch / mm): 1720.1 (W) x 1069.6 (H) x 118.4 (D) mm, 67.72 (W) x 42.11 (H) x 4.66 (D) inch
Packaging (inch / mm): 1880 (W) x 1160 (H) x 280 (D) mm, 74.02 (W) x 45.67 (H) x 11.02 (D) inch
Net (lb / kg): 125.22 lb / 56.8 kg
Gross (lb / kg): 158.95 lb / 72.1 kg
cTUVus, FCC, EPEAT, Mexico coc, Mexico Energy, RoHS, Energy Star 8, CEC, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI, RCM, BIS, PSE, VCCI, CCC, CECP, BSMI
- PACKAGE CONTENTS
1. Power cable(3 meters) 2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser 13. 13. AAA Battery x 2
- Compatible Slot-in PC
VPC12 & VPC25/27-O & VPC25/27-O-B series
