Product Details

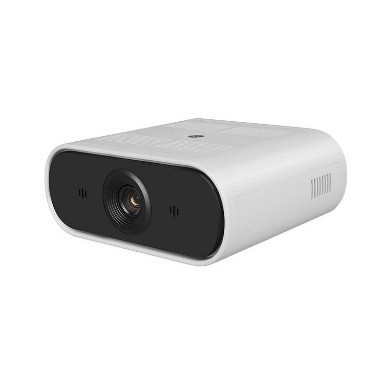

CAMERA SPEC OF CLOSE-UP CAMERA
Sensor 1/2.7″, CMOS, Effective pixel:8.29 Megapixels
Scanning Mode Progressive
Type of Lens Mount M12
Student Close-up Lens f=7.37mm, Horizontal FOV: 43°
Teacher Close-up Lens f=13.1mm, Horizontal FOV: 25°
Digital Zoom 2x
Minimum Illumination 0.5Lux
Shutter 1/30s ~ 1/10000s
White Balance Auto, Indoor, Outdoor, One Push, Manual, VAR
Digital Noise Reduction 2D&3D Digital Noise Reduction
Backlight Compensation Support
Pan Angle ±40°
Tilt Angle +5° ~ -30°
Maximum Rotation Speed
Student Camera: Pan Speed 60°/s,Tilt Speed 30°/s
Teacher Camera: Pan Speed 30°/s,Tilt Speed 30°/s
Image Flip Support
Image Freeze Support
Preset Position 255
Preset Accuracy 0.5°

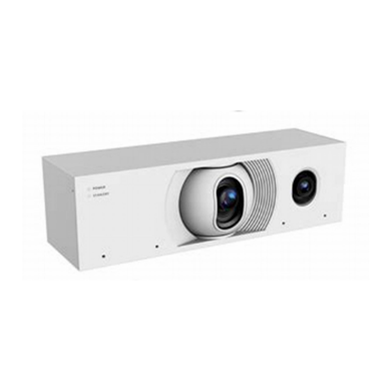

CAMERA SPEC OF PANORAMIC CAMERA
GENERIC SPEC
Input Voltage DC 12V / PoE (802.3af)
Input Current 1A (Max)
Operating Temperature -10°C ~ 40°C
Storage Temperature -40°C ~ 60°C
Power Consumption 12W (Max)
Dimension 242mm (W) × 86mm (D) × 70mm (H)
Net Weight 0.62kg
No Failure Time 30000h
