Plug and Play Mobile Device Compabitle Wireless Presentation Device HDMI Button Kit | InstaShow™
$628.00
Relentless Innovation. Flawless Presentation InstaShow™ Plug & Play – Instant Wireless Meeting Solution

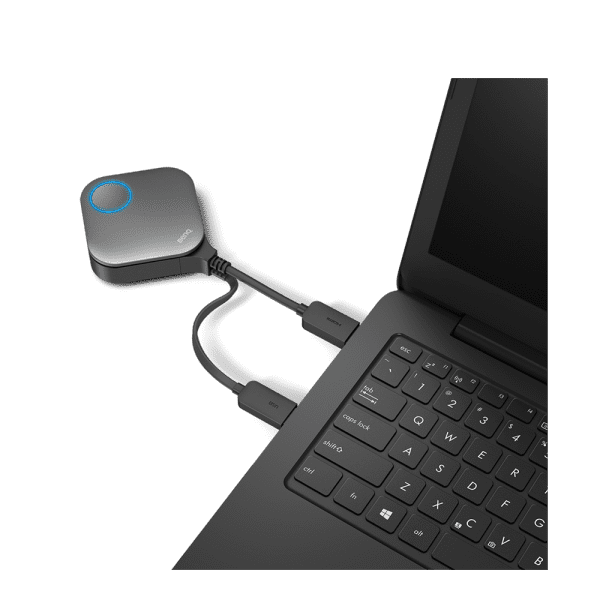

- BenQ’s InstaShow™ is the wireless presentation solution that lets you share ideas immediately from nearly any device. Allowing up to four users to connect and show simultaneously, InstaShow™ can boost meeting engagement and enhance collaboration. With InstaShow, you can start wireless presentation immedialtely once you plug the button into your laptop with no software installation and execution.
Categories: All Models, Hardware based HDMI to HDMI Wireless Presentation Systems, Wireless Presentation Gateway Systems
Brands:: BenQ
- Description
Description
All Specifications
Feature
Model name
WDC20
Product name
InstaShow™ Button kit
Color
Black
Video outputs
HDMI 1.4, comply with HDCP
Frame Rate
Up to 60 fps depending on environment (FHD)
Output resolution
720×480, 720×576, 1280×720, 1920×1080 (1080p), up to 3840×2160(30Hz)
Input resolution
Video:480p, 576p, 720p, 1080p
PC timing: 640×480, 800×600, 1024×768, 1280×720, 1920×1080
PC timing: 640×480, 800×600, 1024×768, 1280×720, 1920×1080
Simultaneous connections
32 pcs
Audio
Stereo, Radio quality 16bits 48KHz
Wireless
IEEE 802.11ac, 5GHz, 2T2R
IEEE 802.11n, 2.4GHz, 2T2R
IEEE 802.11n, 2.4GHz, 2T2R
Data rate wireless
Up to 867 + 300Mbps
Authentication protocol
WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise)
Security (encryption )
WPA2 Personal (AES 128 bit)
Support platform
Windows, MAC, Chrome. Any OS supports HDMI standard 1.4
Reach
Max. 15m between InstaShow Button and InstaShow Host
Temperature range
Operating: 0°C to +40°C (+32°F to +104°F)
Storage: -10°C to +60°C (+14°F to +140°F)
Storage: -10°C to +60°C (+14°F to +140°F)
Humidity
Storage: 5% to 90% relative humidity, non-condensing
Operation: 10% to 80% relative humidity, non-condensing
Operation: 10% to 80% relative humidity, non-condensing

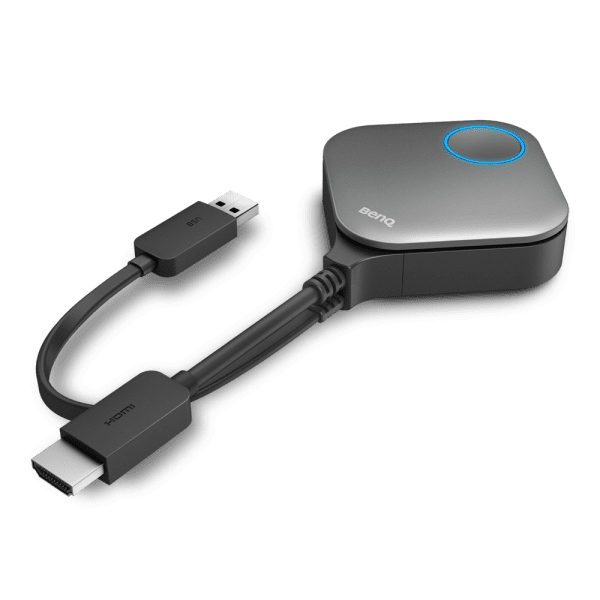

InstaShow Button
Cable
USB Type A, HDMI Cable
Reset Button
x1
Mode Key
NA

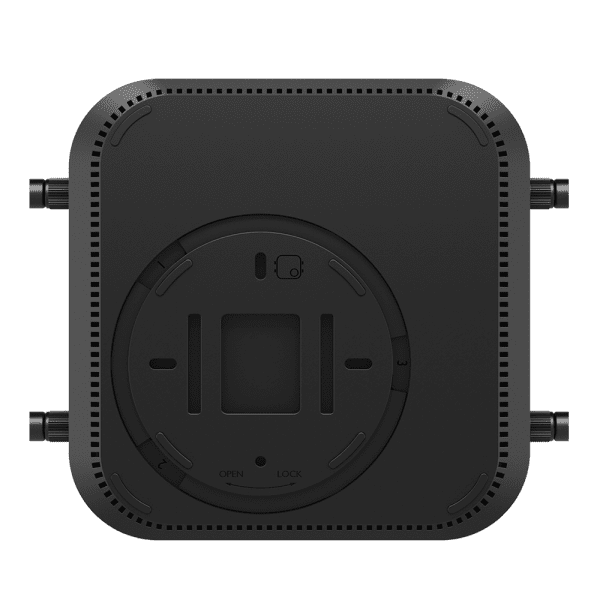

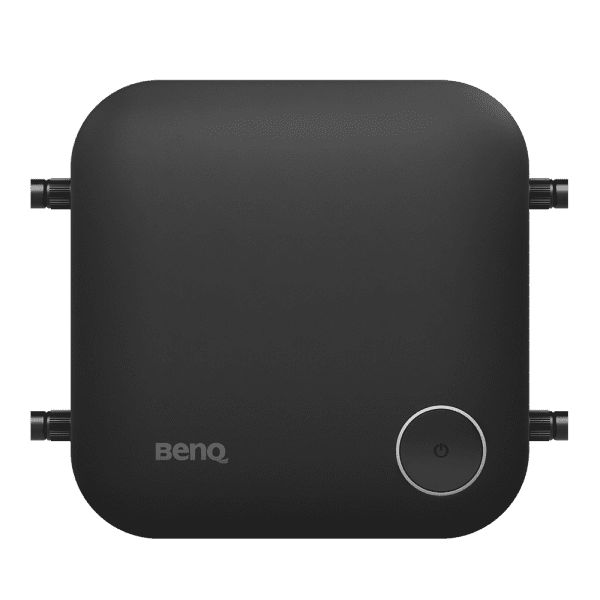

InstaShow Host
LED
3/6 LED(R.G.B)
Power Supply
DC 5V±10%, 0.5A
Power Consumption
2.5W

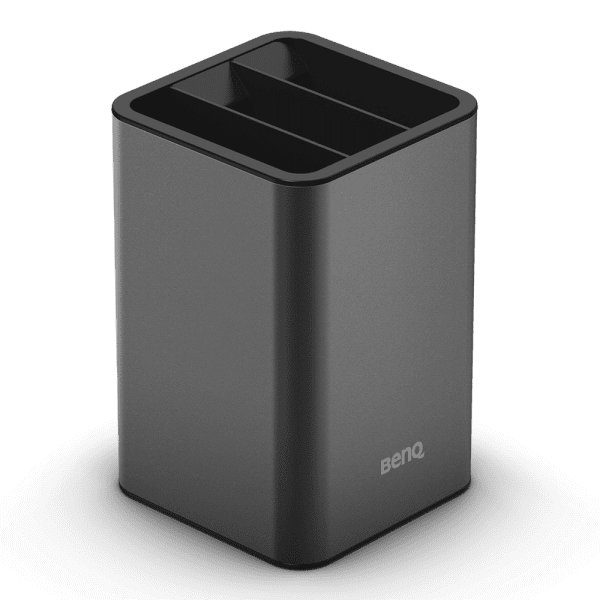

InstaShow Cradle
Dimension (WxHxD)
67*67*24.2mm (without wire)
81*291*24.2mm (with wire)
81*291*24.2mm (with wire)
